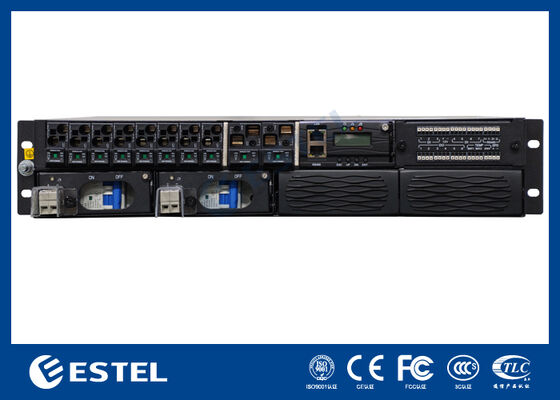

ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring

ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring
ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring

Grote Afbeelding :  ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring

Productdetails:
Plaats van herkomst: China
Merknaam: ESTEL
Certificering: CE UL FCC
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 Instellen
Prijs: USD300-USD1000
Verpakking Details: houten kist
Levertijd: 20-30 dagen
Betalingscondities: T/T, Western Union
Levering vermogen: 5000
Contact
Gedetailleerde productomschrijving
Hoofdfunctie: Stroomdistributie AC distributie: Inbegrepen
Hoorbaar lawaai: ≤55dB(A) (40℃) Maximum input AC: 320 - 475 VAC
DC -uitgangsvermogen: 108 kW Stroom: 2000W
Inlaatspanning wisselstroom: 220Vac of 380Vac Montage: gemonteerd of gelast
Systeemdimensie: 19 x 14,9 x 12,2 De aanleg van kabelnetten van Wijze: Boveninlaat en -uitlaat
Bescherming tegen binnendringing: IP55 Capaciteit: (Maximum) 8KW
Ingangsstroom harmonisch: ≤3% (100% niet-lineaire belasting) Toezicht: Monitoring en besturing op afstand
Energie: 9600Wh
Markeren:

rack mounted telecom power system

,

DC power distribution with monitoring

,

telecom power system 8 outputs

ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring





Product Description of DC Power Distribution System




The ET48100-P5E22 is a rack-mounted DC power distribution system designed for telecom cabinets, communication sites and network equipment rooms requiring centralized DC distribution, battery access and remote monitoring. Based on the product images, the system features a compact horizontal chassis, front-access wiring layout and integrated controller, making it suitable for cabinet installation where space efficiency and service convenience are important. The front panel is clearly divided into feeder output area, battery input area, control and communication area, and alarm / signal terminal area, allowing easier installation, circuit identification and maintenance.







Key Features of DC Power Distribution System






• Model identified on top label: ET48100-P5E22
• Rack-mounted compact chassis for telecom cabinet integration
• 8 DC feeder positions marked from F1 to F8
• 2 battery input ports marked as BAT1 and BAT2
• 1 BLVD position marked on the front distribution area
• Integrated controller with LCD display, status LEDs and operation keys
• Built-in communication ports including 1 LAN port and 1 RS485 port
• Separate signal terminal block for DI, DO, temperature, battery and environment connections
• Front-access design for simplified wiring, inspection and maintenance







Technical Specifications of DC Power Distribution System







Item Specification
Model ET48100-P5E22
Product Type Rack-Mounted DC Power Distribution System
Installation Type Horizontal rack / cabinet installation
Enclosure Structure Low-profile metal chassis with front-access layout
Feeder Output Quantity 8 feeder ways, labeled F1–F8
Battery Input Quantity 2 battery inputs, labeled BAT1 and BAT2
Load Disconnect Label 1 position marked BLVD
Controller Display Integrated LCD screen on front panel
Controller Keys 4 keys: ESC, UP, DN, ENT
Controller Status LEDs 4 front indicators visible above display
Network Port 1 × LAN port
Serial Communication Port 1 × RS485 port
Digital Input Terminal 7 DI terminals, labeled DI 1–7
Digital Output Terminal 6 DO terminals, labeled DO 1–6
Auxiliary Signal Marking Terminal markings include 12V, TEMP, BAT1, BAT2, ENV, SPD
Additional RS485 Signal Terminal Marked RS485+ / RS485- on signal terminal block
Front Distribution Layout Feeder, battery, controller and terminal sections integrated on one front panel
Mechanical Access Front-side operation and servicing
Mounting Brackets Rack ears provided on both sides of the chassis
Application Telecom cabinets, communication rooms, transmission sites, DC backup and distribution systems

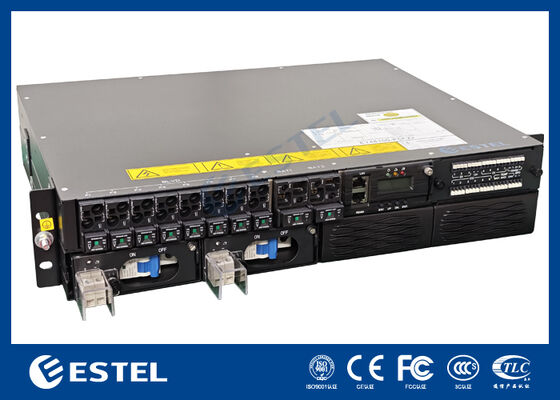

ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring 0

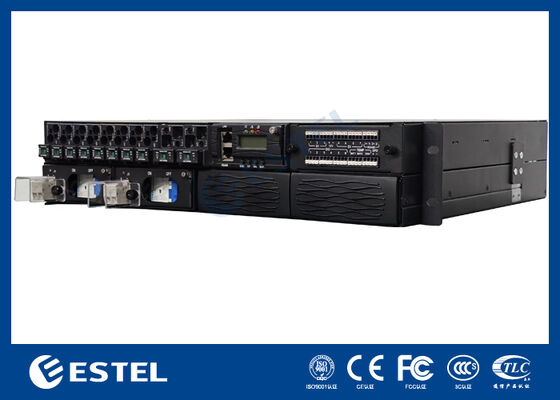

ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring 1

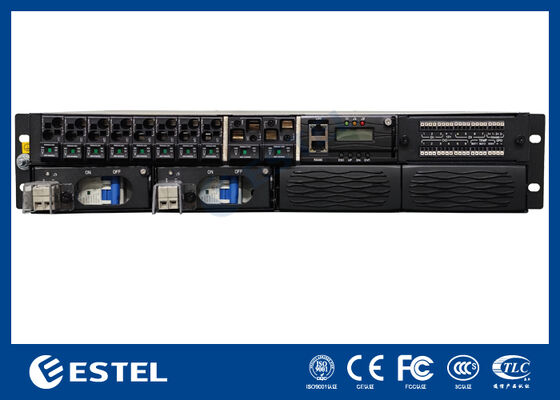

ET48100-P5E22 Rack Mounted DC Power Distribution System for Telecom Networks with 8 Feeder Outputs 2 Battery Inputs and Integrated Monitoring 2







Operating Guidelines of DC Power Distribution System

  • Install the ET48100-P5E22 in a standard rack or cabinet using the side mounting brackets.
  • Connect the feeder circuits through the front distribution section labeled F1 to F8 according to the project design.
  • Connect battery strings through the BAT1 and BAT2 positions and verify correct polarity before commissioning.
  • Use the LAN or RS485 interface to connect the system to a monitoring platform for status supervision and alarm reporting.
  • Wire external signals through the terminal block according to the markings for DI, DO, TEMP, BAT and ENV.
